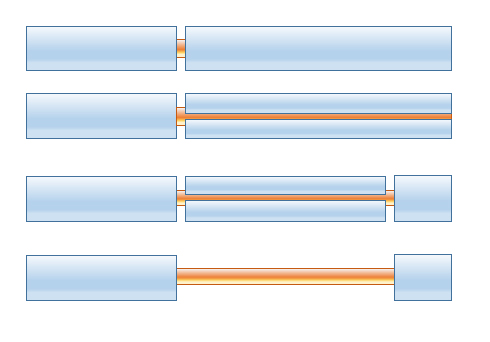

The Mercury-4E dual axis optics allows flexible wire stripping:
From top to bottom:
- cross-cut: laser separates the slug of insulation - Operator pulls off as a second operation
- slit: laser makes a cross cut but also slits along the insulation to aid peeling off a long length. Especially used for cable jackets
- window: like a slit, but two cross cuts are made to allow a window section of insulation to be removed - used especially for accessing the shield of a cable for attaching to the shield
- area ablation: the laser passes back and forth over the wire multiple times to completely vaporize an area of insulation.
The Mercury-4E strips wires and shielded cable ranging in size from 0.001" to 0.24" (0.025 mm to 6 mm) outer diameter.
The Mercury-4E is suited to:
- removing jackets from shielded multi-conductor cables
- removing jackets and dialetrics from high performance microwave cables
- cutting aluminized mylar foils of twin-ax cables
- removing bonded insulations.
The laser is strongly absorbed by the wire/cable insulation causing it to melt or vaporize. By stripping from both sides automatically a slug of insulation can be separated from the main wire/cable. Full vaporization can be achieved by passing the laser spot over the wire multiple times at high speed in a hatch pattern. For bonded materials this may be the best method for insulation removal. In the case of shielded cables, the shield needs to be reasonably complete (>80% coverage) in order to protect the inner wire insulation whilst laser cutting the outer jacket.
All polymer insulations can be cut with the Mercury-4E laser. The amount of melt, vaporization or chemical decomposition depends on the exact polymers used. Below is a non-exhaustive list of materials that can be stripped:
- Fluoropolymers, such as PTFE, ETFE, PFA
|Min. Outer Cable Diameter||0.025 mm (0.001")|
|Max. Outer Cable Diameter||6 mm (0.24")|
|Stripping Length Increments||0.1 mm (0.01")|
|Strip types||Cross cuts, slits, windows, area ablation|
|Max. Stripping Length||100 mm (4")|
|Speed||Up to 2000 mm/s (80"/s)|
|Cable Loading||Either single cable port or using a fixture plate
for holding complex cables
|Dimensions (L x W x H)||712 x 356 x 866 mm (28 x 14 x 34")|
