Enamel Wire Stripper

Odyssey-4E

The Odyssey-4E is an extended version of our Odyssey-4 UV laser wire stripping system with double the processing area: 4″ x 4″ (100 mm x 100 mm) instead of 2″ x 2″ (50 mm x 50 mm).

Strip up to double the quantity of wires at any one time.

Clean
Results

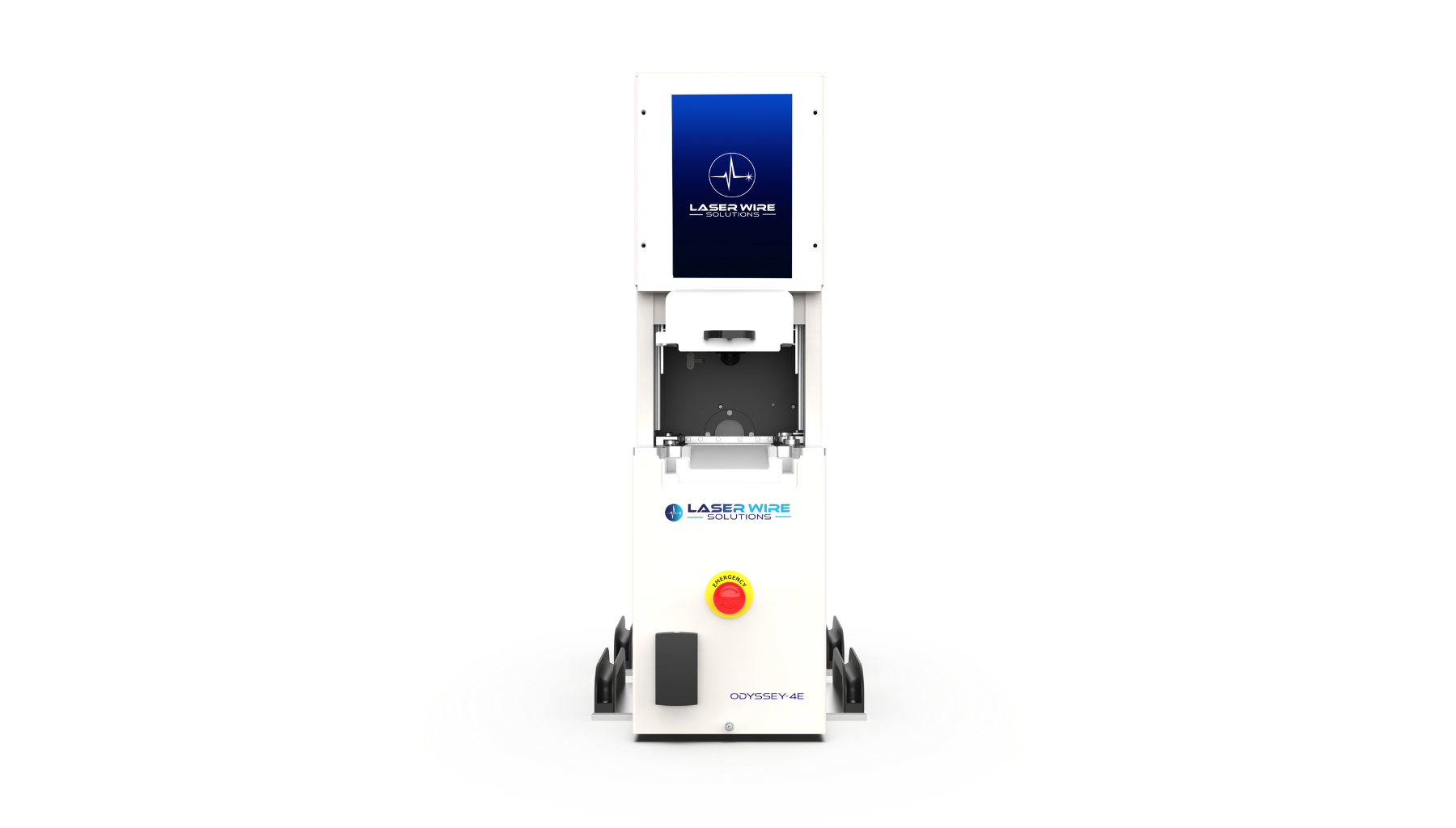

Laser Wire Solutions-Odyssey 4E-Laser Wire Stripper

High
Precision

Wire stripping for fine medical device wires, re-imagined. The Odyssey-4E is optimised for cutting thin metal parts such as conductors, foil shielding or braids. The ultra-short laser pule can cut metallic layers whilst harmlessly reflecting from the polymer layers underneath.

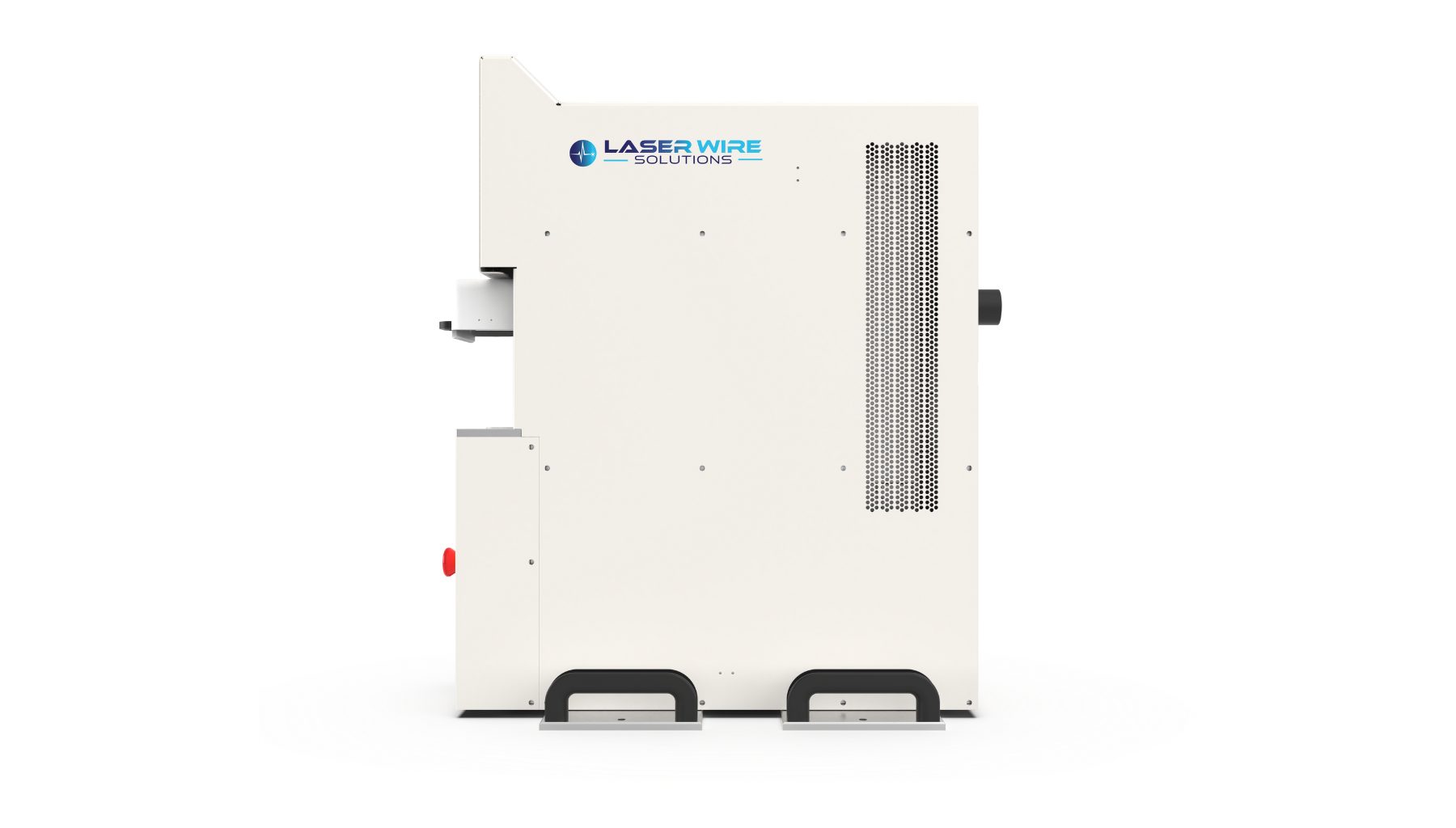

Laser Wire Solutions-Odyssey4-Laser Wire Stripper

Available as stand alone, in-line or fully automated

Optional Enhanced Vision System

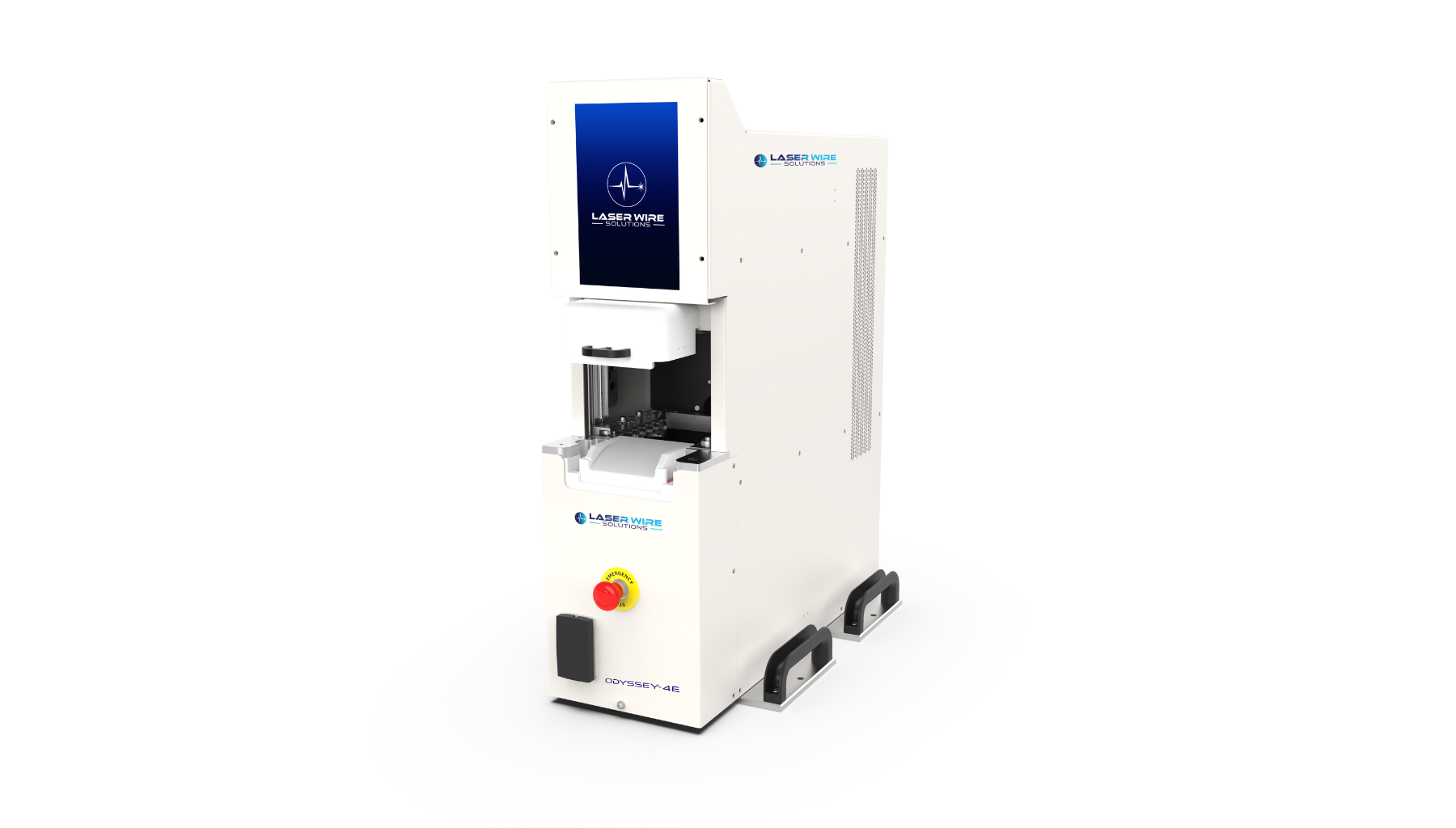

Compact benchtop system

  • Benchtop System

    Can be operated from a sitting position with space for other tools and parts.

  • Large process area for enhanced productivity

    The 4x4” process window allows longer strip lengths or a larger number of wires to be processed on the fixture plat

  • Automatic process door gives hands free operation

    Enhances productivity by removing the need for the operator to open and close the fixture loading door

  • Ultra-short pulsed laser minimizes heat damage

    The Odyssey-4E laser has an even shorter pulse length than the Odyssey-4 making it particularly suitable for shield cutting - both foils and micro-coax braids

Materials

The Odyssey-4E machine is capable of stripping all types of polyimide type enamel insulations, typically used for catheter wiring and other medical devices. Below is a non-exhaustive list of materials that can be stripped:

Polyurathane Enamel

Polyester Enamel

Polyester-imide

Polyamide-imide

Aluminium /
Mylar Foil Shields

Micro-Coax Served and Braided Shields

Technical Specifications

Min. Outer Cable Diameter0.025 mm (0.001″)
Max. Outer Cable Diameter0.25 mm (0.2″)
Stripping Length Increments0.1 mm (0.01″)
Strip typesArea ablation of enamel insulation plus cutting of conductors
Max. Stripping Length100 mm (4″)
SpeedUp to 3000 mm/s (120″/s)
Cable LoadingVia fixture plate – up to 100 x 100 mm (4″ x 4″) stripped at once
Dimensions (L x W x H)

Bench unit:
620 mm (24.41″) x 200 mm (7.87″) x 760 mm (29.92″)
Under bench unit:
730 mm (28.74″) x 600 mm (23.62″) x 630 mm (24.80″)

Need More Information?

Whether you need more information or you believe the Odyssey-4E is the right solution for your requirements, our team are on hand to support you. Get in touch today.

Other Medical Wire Stripping Solutions

The Odyssey 4E is just one of our machines that is suitable for medical device wires, explore the full range below:

Download Odyssey-4E Datasheet
