Enamel Wire Stripper

Odyssey-4

The Odyssey-4 is a high precision system for the stripping of enamels from small gauge wires down to 58 AWG and even smaller. It is the perfect solution for medical device manufacturing.

Clean
Results

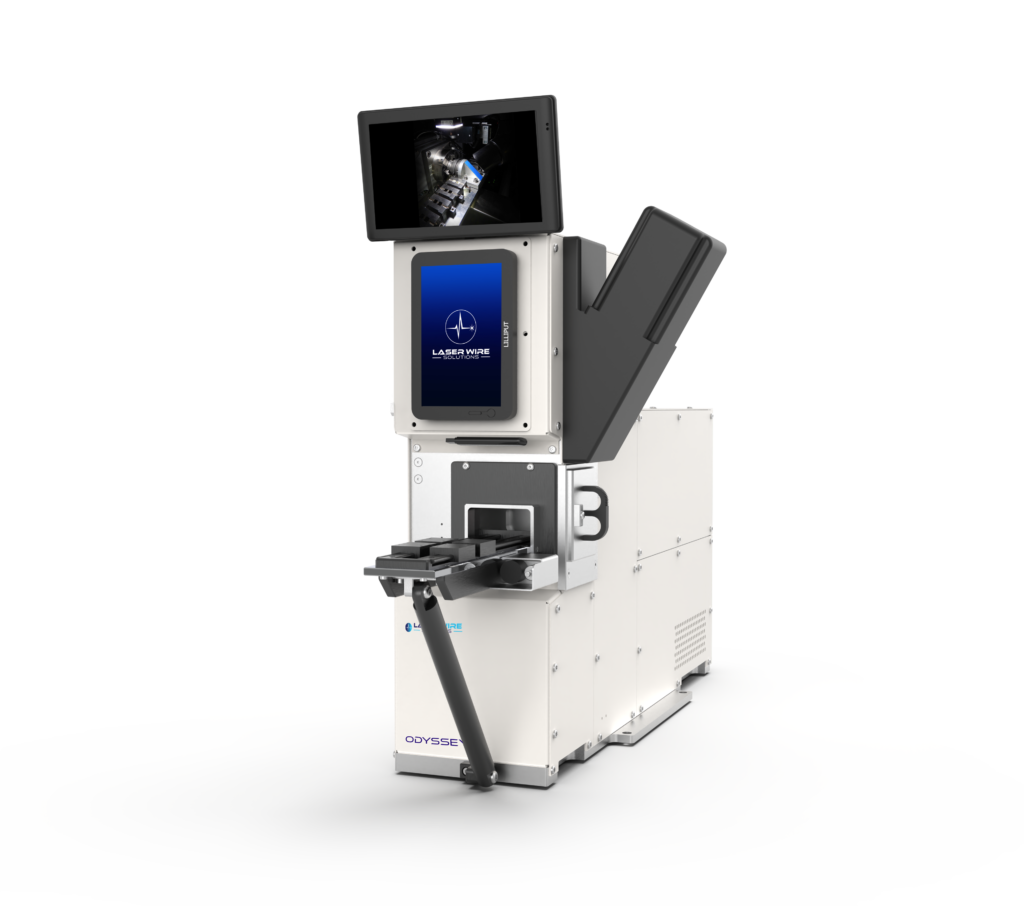

Laser Wire Solutions-Odyssey4-Laser Wire Stripper

High
Precision

Wire stripping for fine medical device wires, re-imagined. The Odyssey-4 laser wire stripping solution vaporizes any polyimide-type insulation cleanly and precisely, whilst harmlessly reflecting from the shield or conductor. This solution leaves behind no residue meaning there’s no need for further chemical treatment, making it safer and more efficient for use on the production floor.. Experience effortless wire stripping with the easy to use benchtop system that is the Odyssey-4.

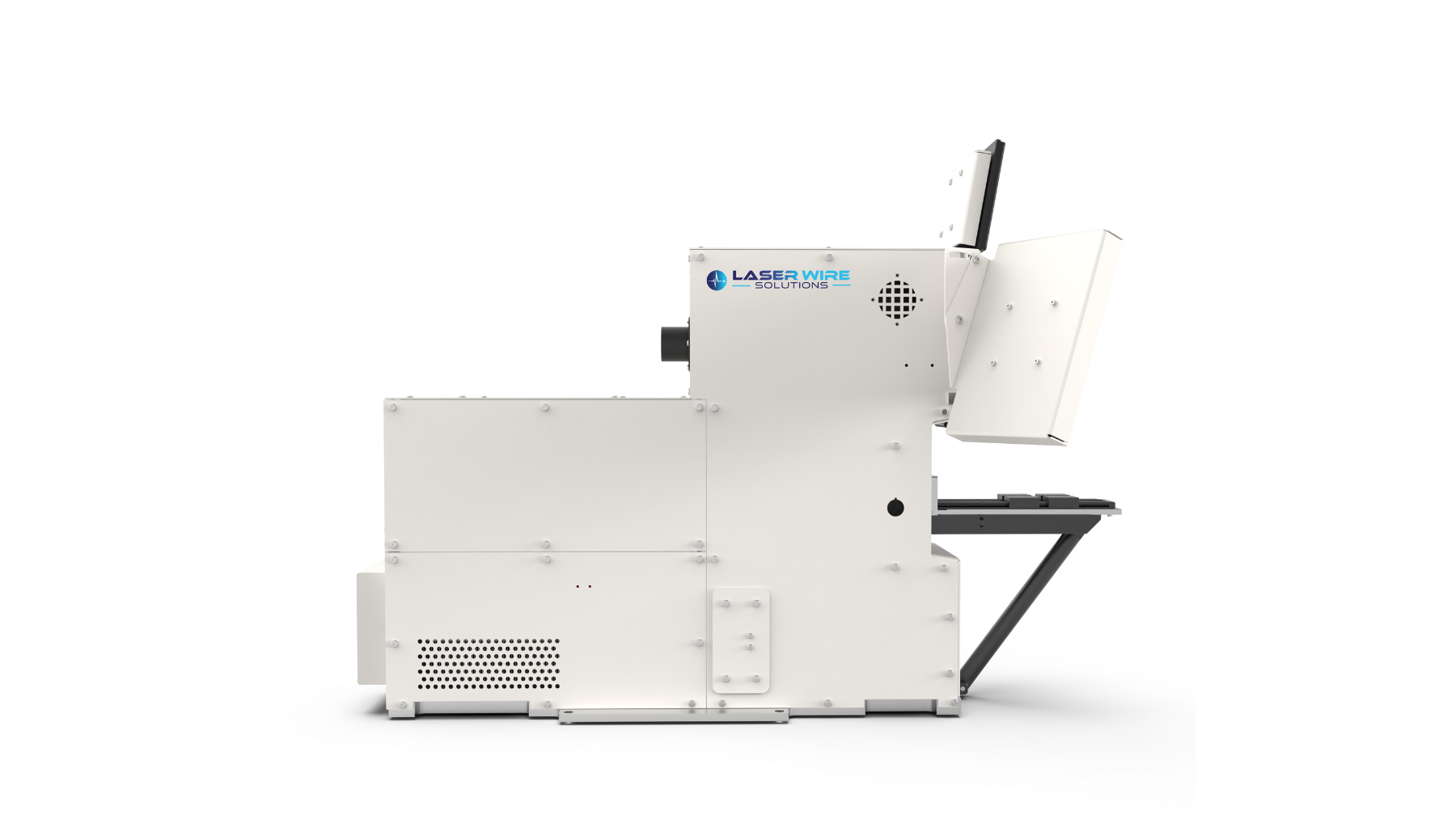

Laser Wire Solutions-Odyssey 4-O4 (2)

Available as stand alone, in-line or fully automated

Closed loop camera system

Compact benchtop system

  • Closed Loop Camera System

    The internal camera system allows you to verify and check the stripping performance during the process.

  • Available as Stand Alone, In-Line, or Fully Automated

    The compact system has been built with the assembly line in mind to suit all possible requirements.

  • Benchtop System

    Can be operated from a sitting position with space for other tools and parts.

Materials

The Odyssey-4 machine is capable of stripping all types of polyimide type enamel insulations, typically used for catheter wiring and other medical devices. Below is a non-exhaustive list of materials that can be stripped:

Polyurathane Enamel

Polyester Enamel

Polyester-imide

Polyamide-imide

Kapton

Technical Specifications

Min. Outer Cable Diameter0.025 mm (0.001″)
Max. Outer Cable Diameter0.25 mm (0.2″)
Stripping Length Increments0.1 mm (0.01″)
Strip typesArea ablation of enamel insulation plus cutting of conductors
Max. Stripping Length50 mm (2″)
SpeedUp to 3000 mm/s (120″/s)
Cable LoadingVia fixture plate – up to 50 x 50 mm (2″ x 2″) stripped at once
Dimensions (L x W x H)

Bench unit:
620 mm (24.41″) x 200 mm (7.87″) x 760 mm (29.92″)


Under bench unit:
730 mm (28.74″) x 600 mm (23.62″) x 630 mm (24.80″)

Need More Information?

Whether you need more information or you believe the Odyssey-4 is the right solution for your requirements, our team are on hand to support you. Get in touch today.

Do you need to process more wires at once?

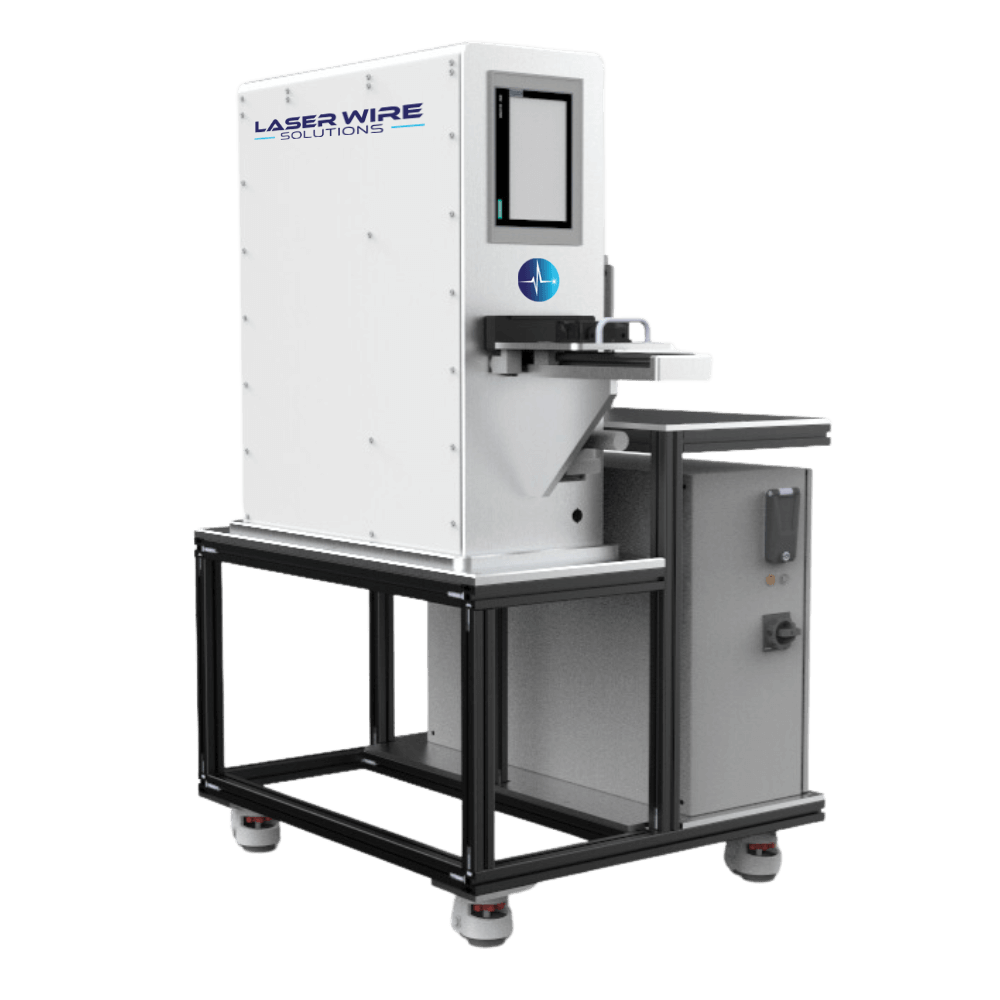

Odyssey-4E

The Odyssey-4E is an extended version of our Odyssey-4 UV laser wire stripping system with double the processing area: 4″ x 4″ (100 mm x 100 mm) instead of 2″ x 2″ (50 mm x 50 mm).

Strip up to double the quantity of wires at any one time.

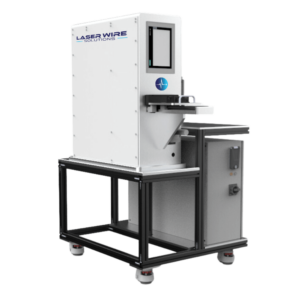

Laser Wire Solutions-Odyssey4-Laser Wire Stripper

Download Odyssey-4 Datasheet
