Almost all insulation materials can be stripped using our laser technology. There’s no need to change equipment, our solutions can tackle different materials in one system.
Below you’ll find a selection of the materials that have been tested using and can be processed using the Laser Wire Solutions suite of machines.
The enamel insulation was successfully stripped in a window pattern using the Odyssey-4.

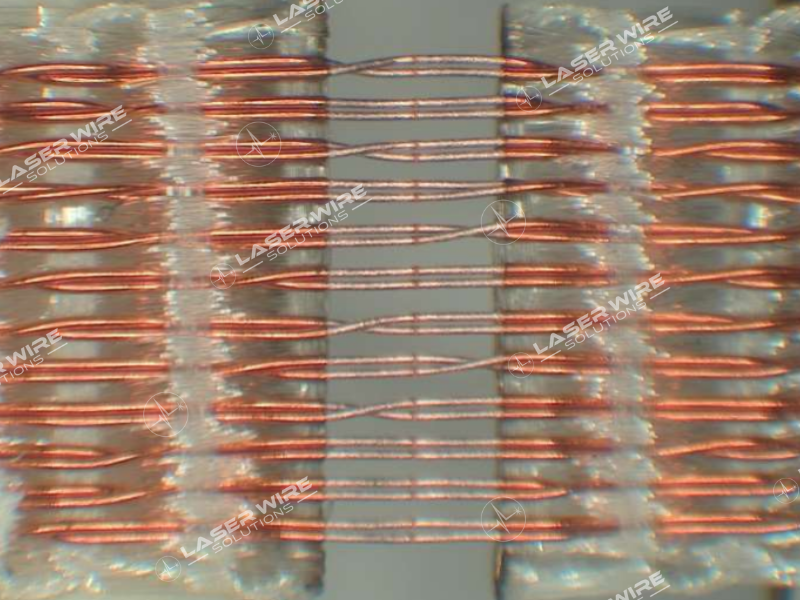

The looms were successfully processed by the Odyssey 4 UV laser system.
The 8-core InfiniBand cable was successfully processed using the Mercury-4 and Odyssey-4.

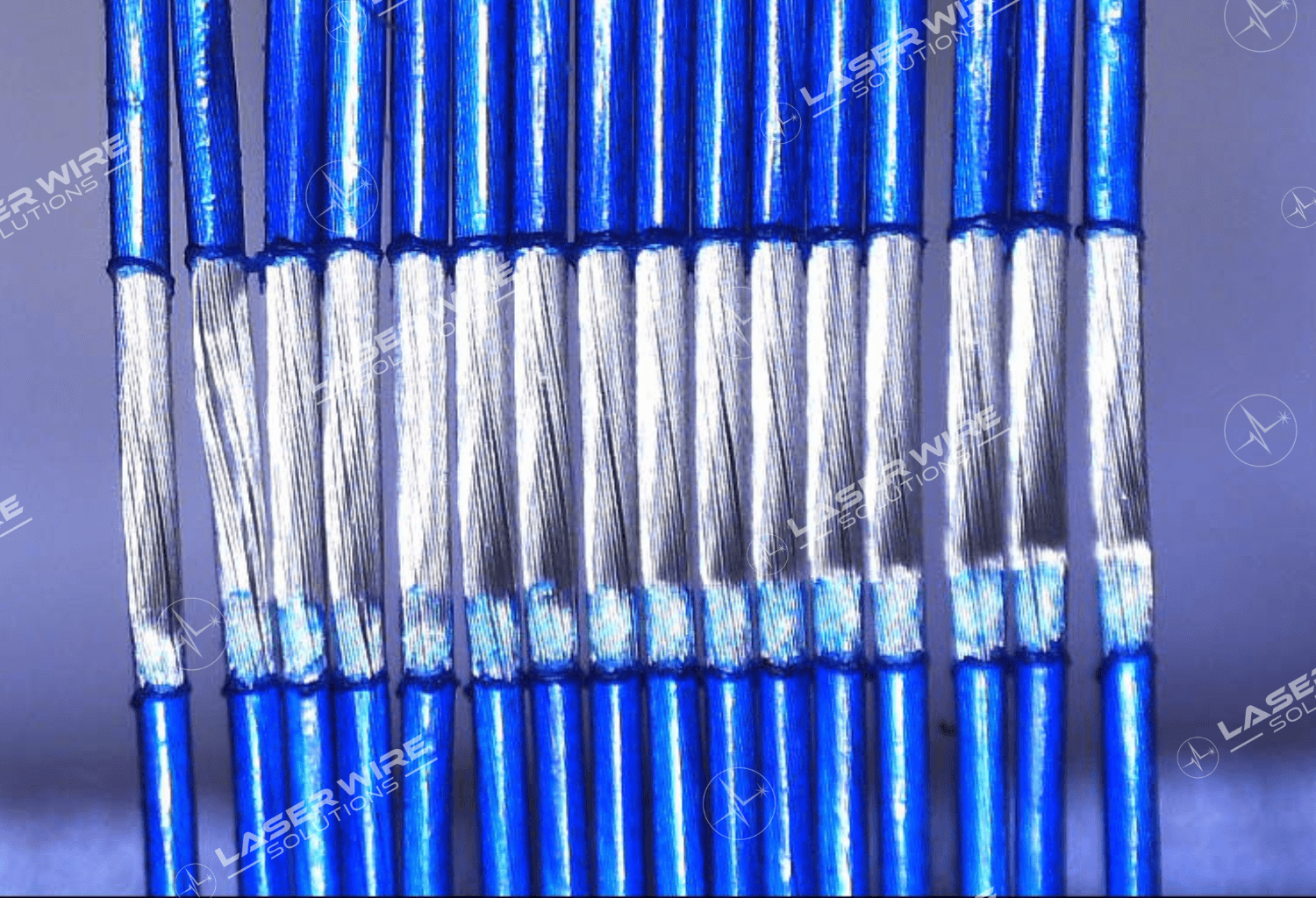

The multiple layers of insulation on the micro-coax cable were successfully stripped and cut using the MCC.

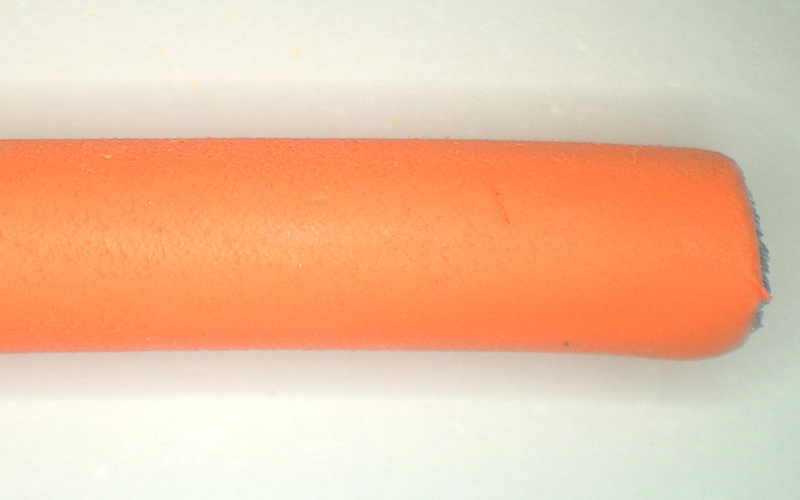

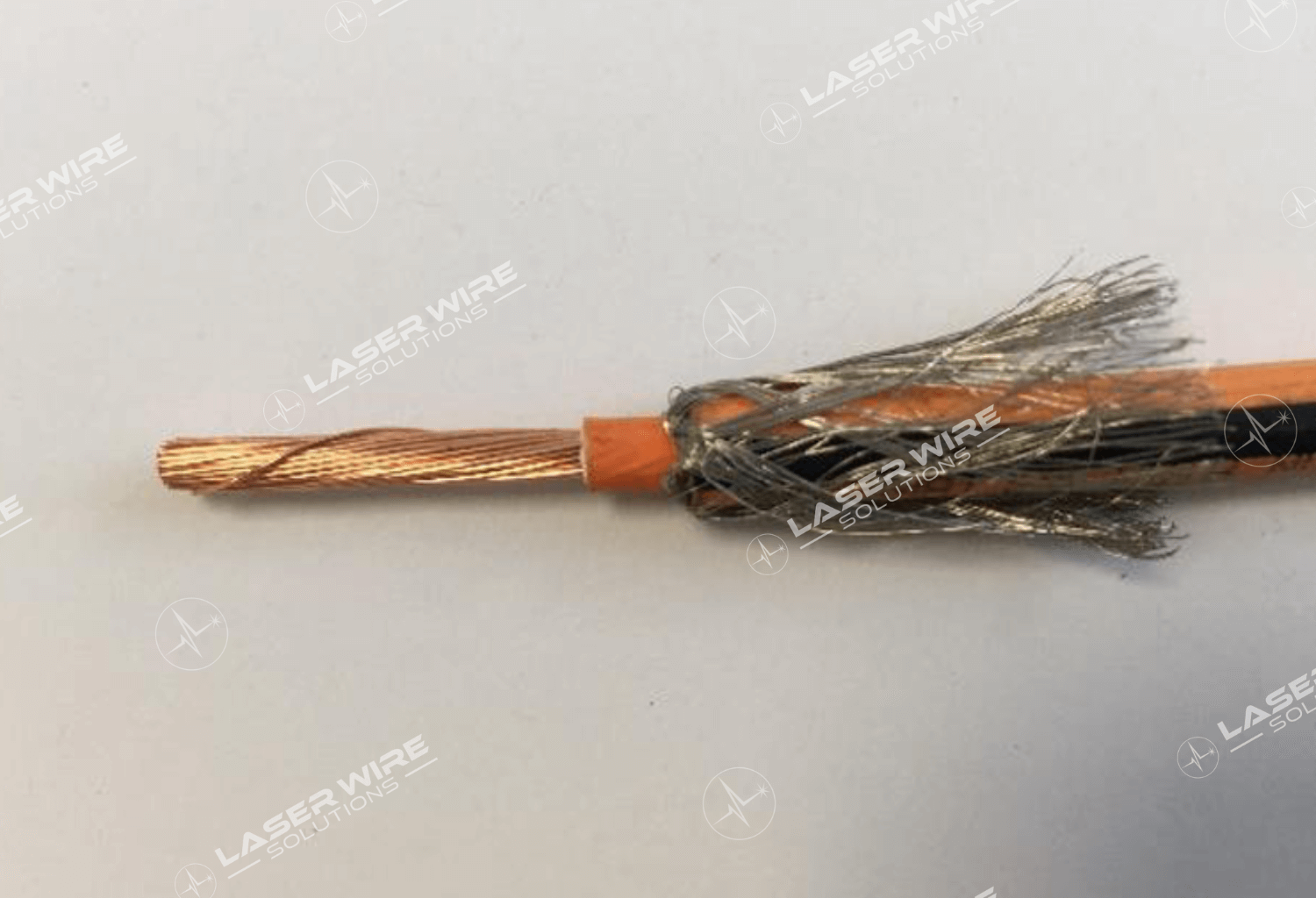

The high voltage wire typically found in the electrification of vehicles can be stripped using the Mercury-5 or Mercury-6.
46 AWG fine magnet wire with gold plated conductor successfully processed using the Odyssey-4.

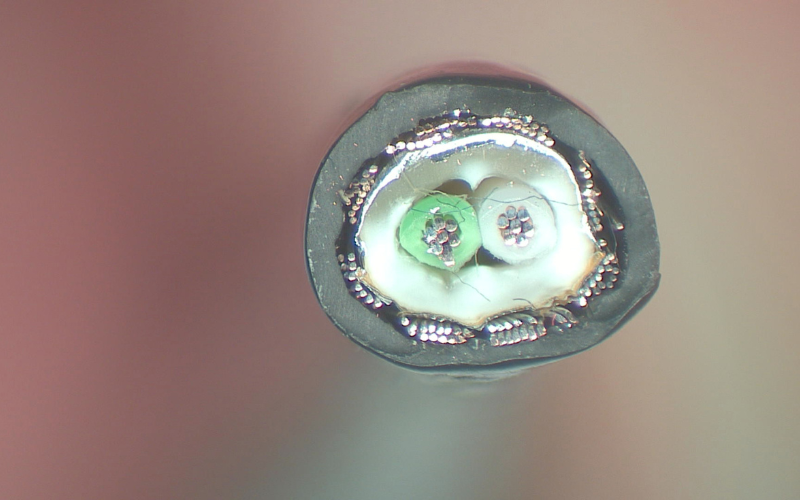

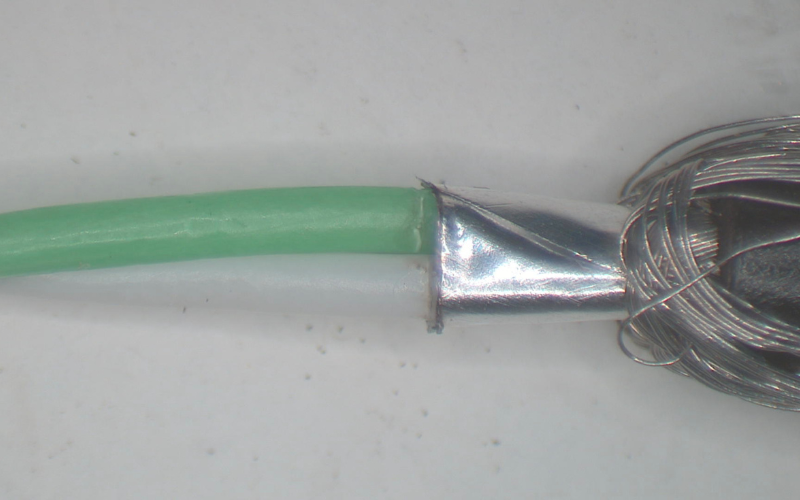

The shielded wire was successfully processed using the Odyssey-4 laser system.
The fiber optic cables samples were successfully processed using the Mercury-4 laser system.
40AWG Type T Bifilar Thermocouple wire successfully processed using the Odyssey-4.
The copper cored magnet wire and coil was successfully processed using the Odyssey-4.

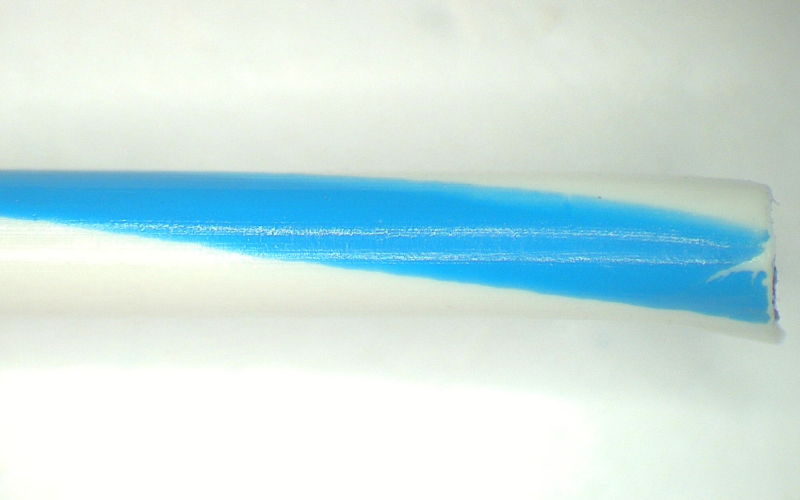

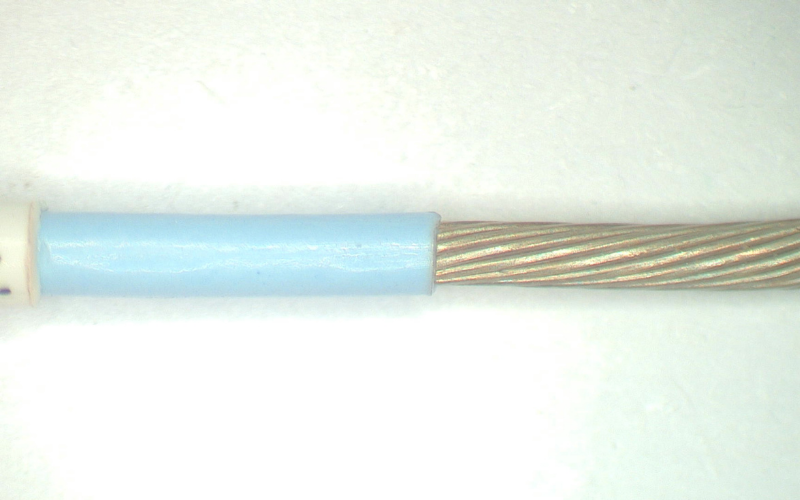

The polymer wire insulation here was successfully ablated using the Mercury-4.
This type of twin core wire can be successfully stripped using the Mercury-6.

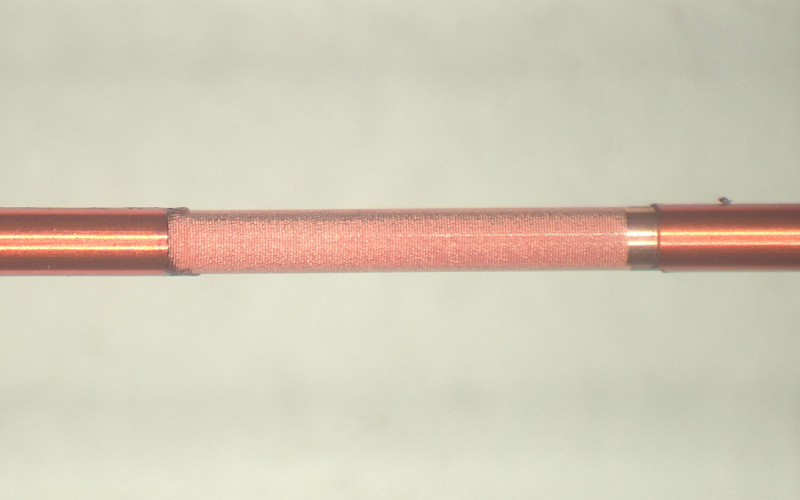

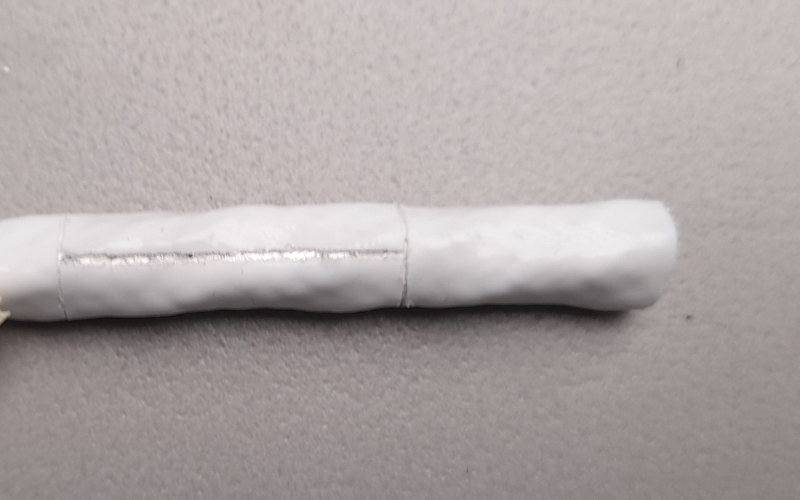

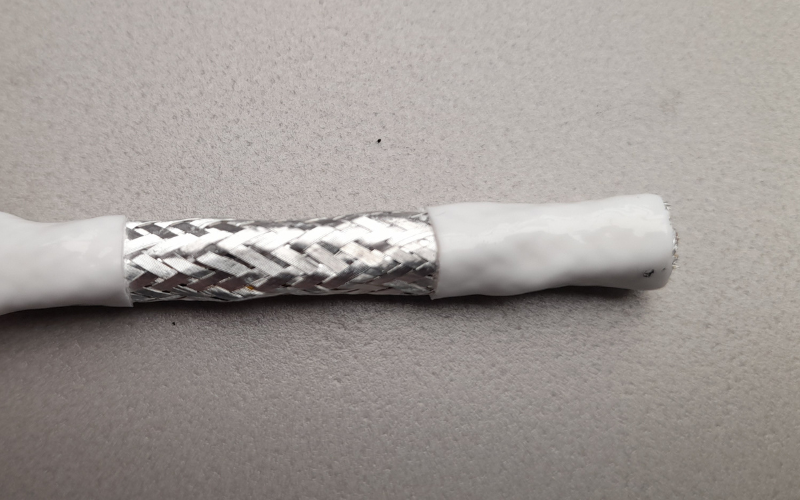

A window strip pattern and insulation removed successfully using the Mercury-2.
Flat 32AWG Bifilar successfully processed using the Odyssey-4.
38 AWG PFA insulated wire successfully processed using the Mercury-4.

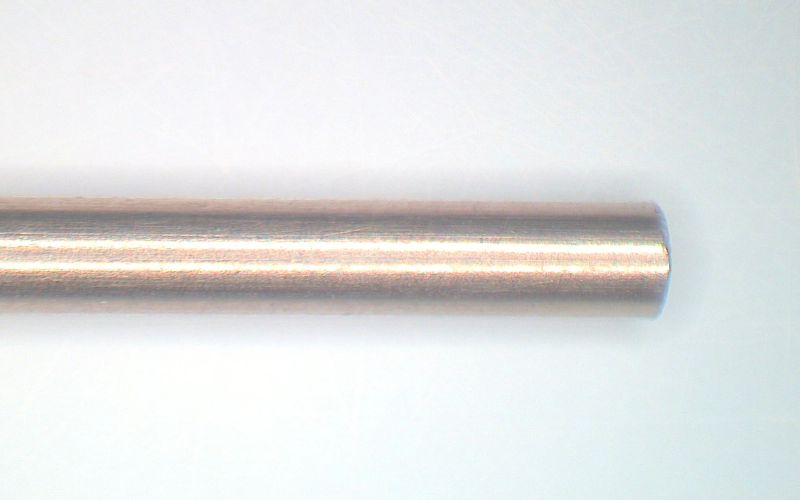

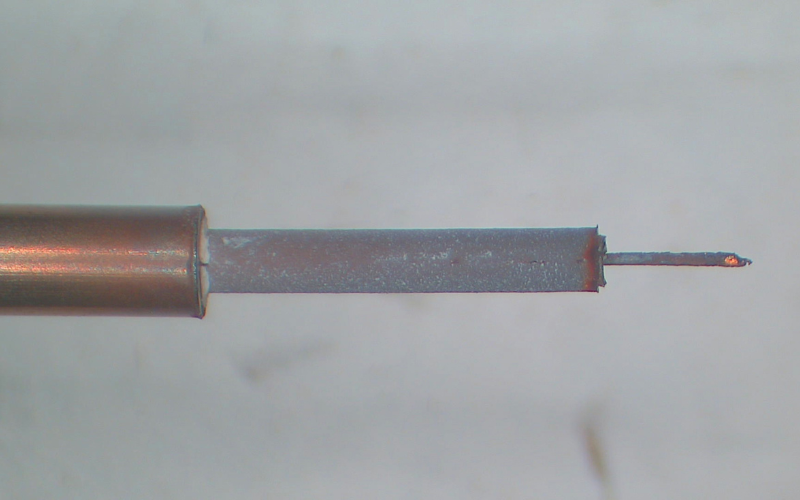

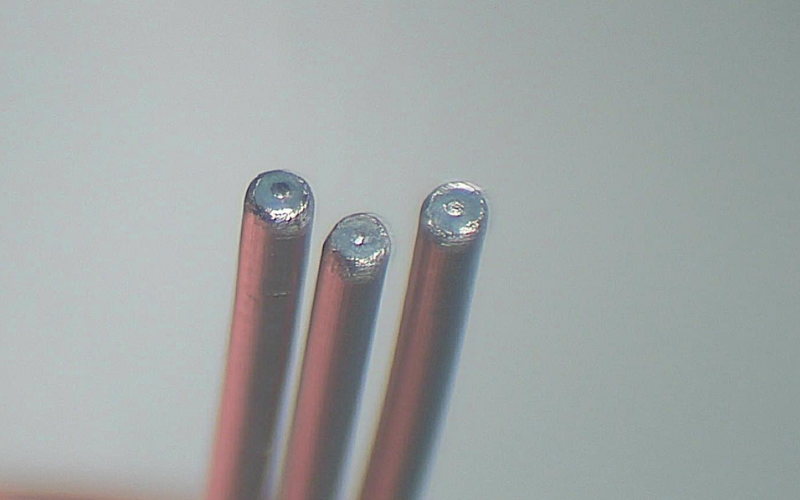

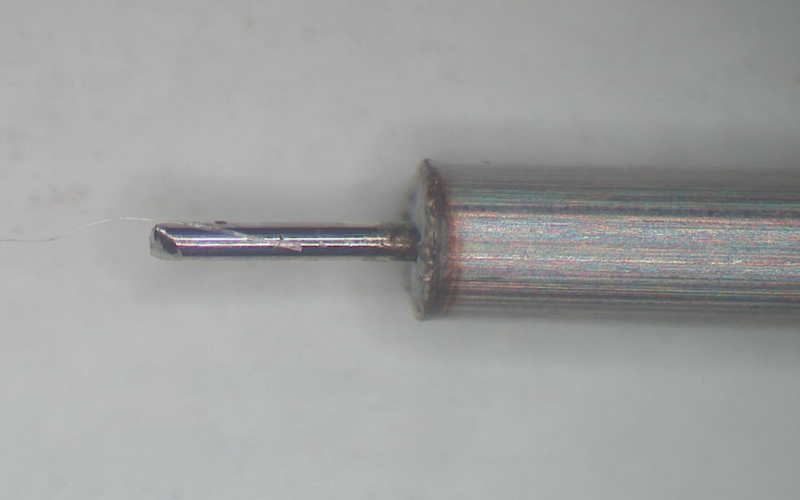

A distinct edge between the outer insulation and inner conductor was created, successfully processed using the Gemini-4E.
The micro-coaxial samples were successfully processed using the combination of Odyssey-4 and Mercury-4 laser systems.
Discover the capabilities of our machines with your application before you buy
