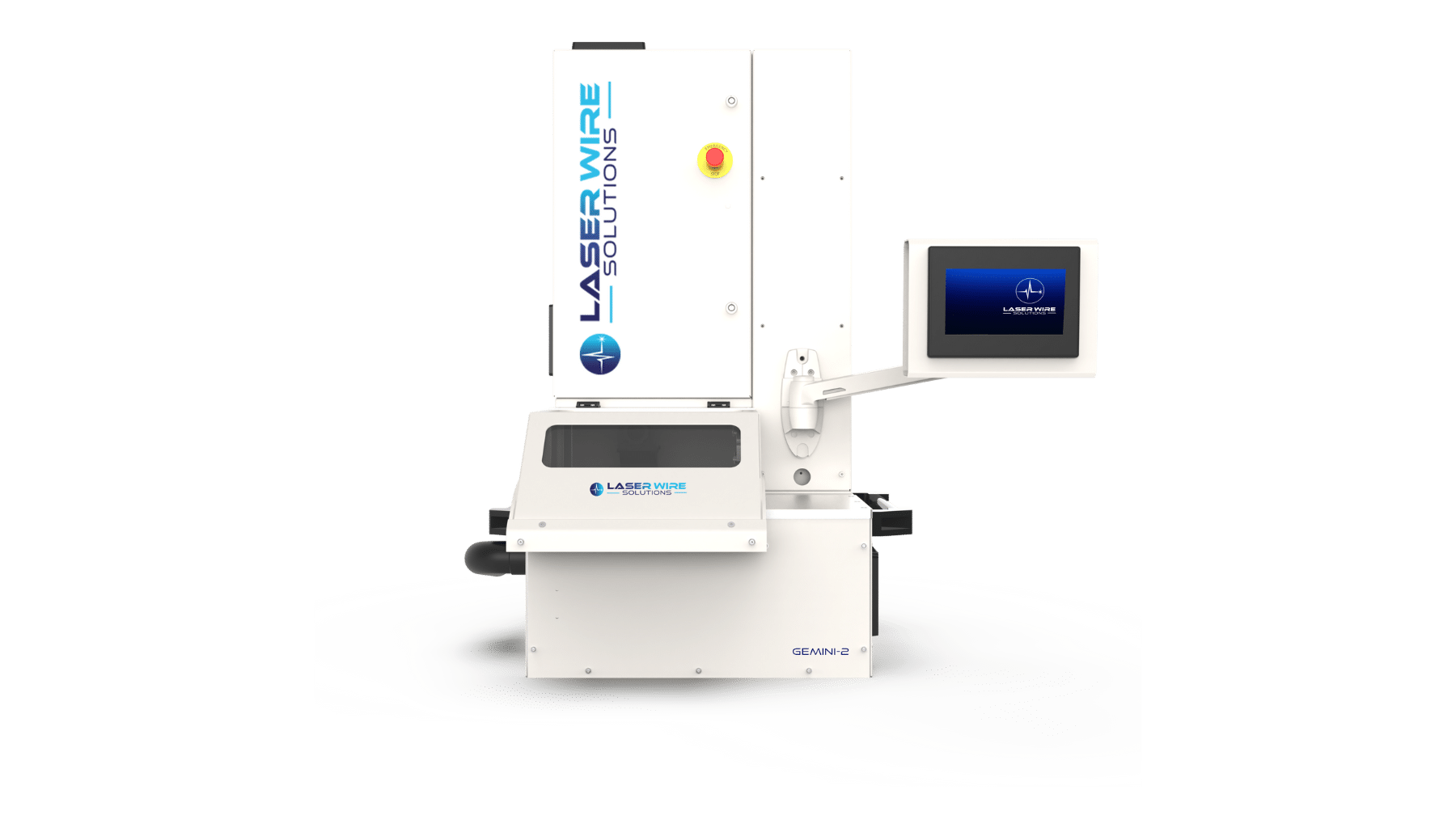

The Gemini-2 is a highly flexible solution for scribing and cutting cable shields, in particular tinned micro-coax and aluminized foils. The sealed laser technology means that it’s safe to use on the open shop floor.
Scribe your micro-coax shields with ease using the Gemini-2. With a large processing area, the Gemini-2 allows operators process multiple wires at once leading to higher productivity. Featuring fiber laser technology, the Gemini-2 vaporizes a small volume of shield material cleanly and precisely.
Available as stand alone, in-line or fully automated
Closed loop camera system
Compact benchtop system
Allows accurate and precise scribing and cutting of micro-shields without damaging underlying polymer layers
The large 5″ x 7″ (127 mm x 178 mm) working area, allowing multiple wires to be stripped in one go.
Can be operated from a sitting position with space for other tools and parts.

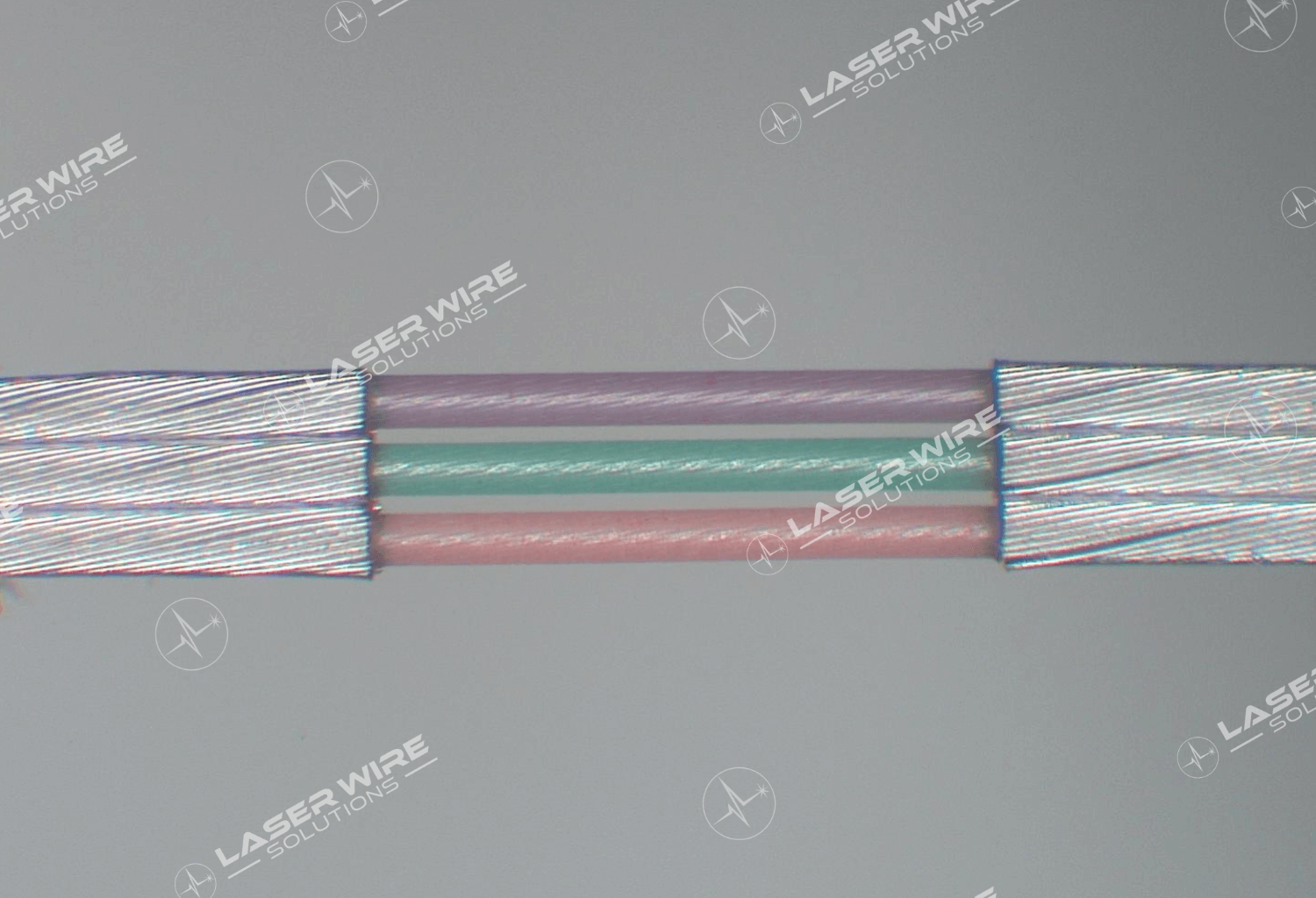

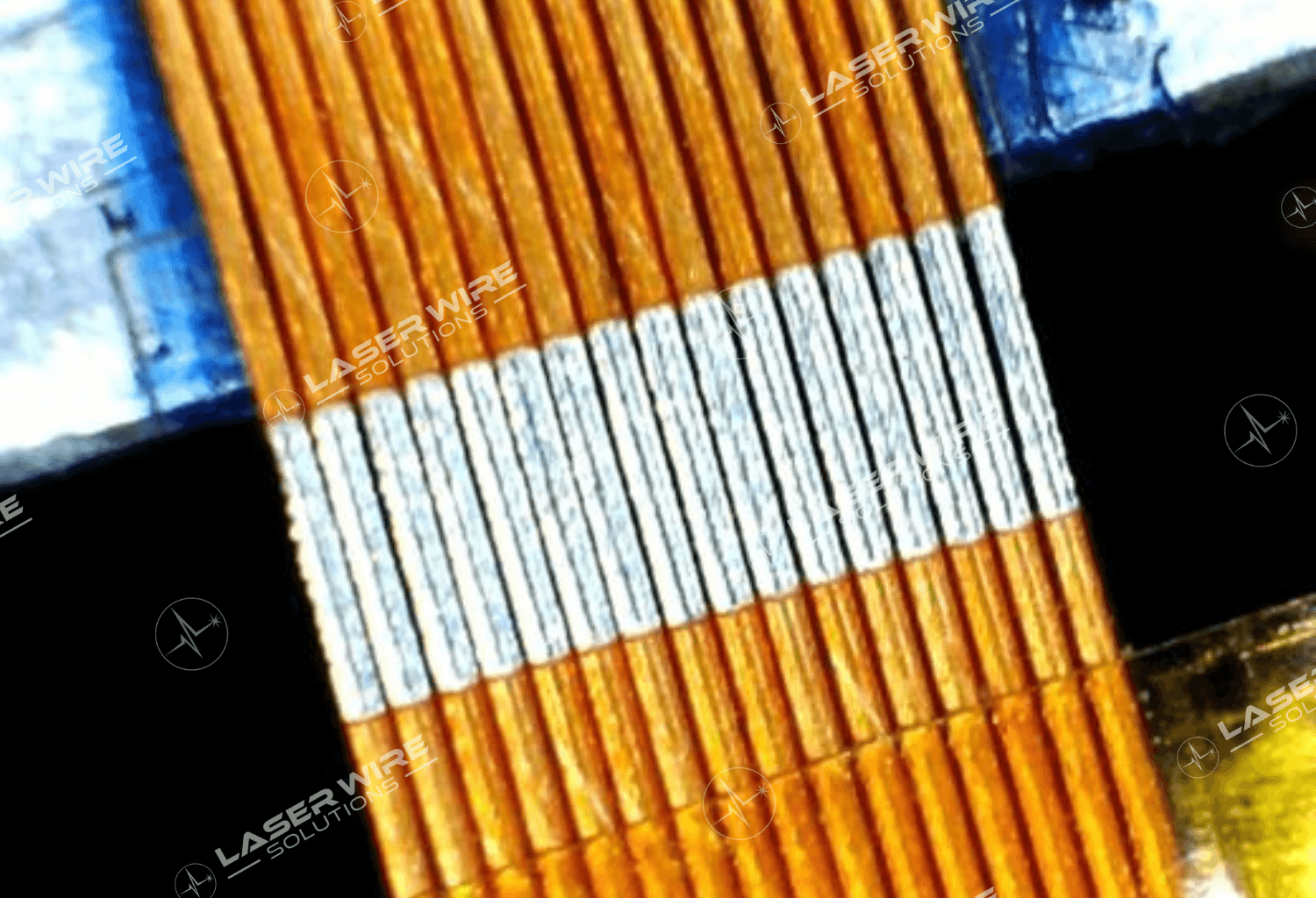

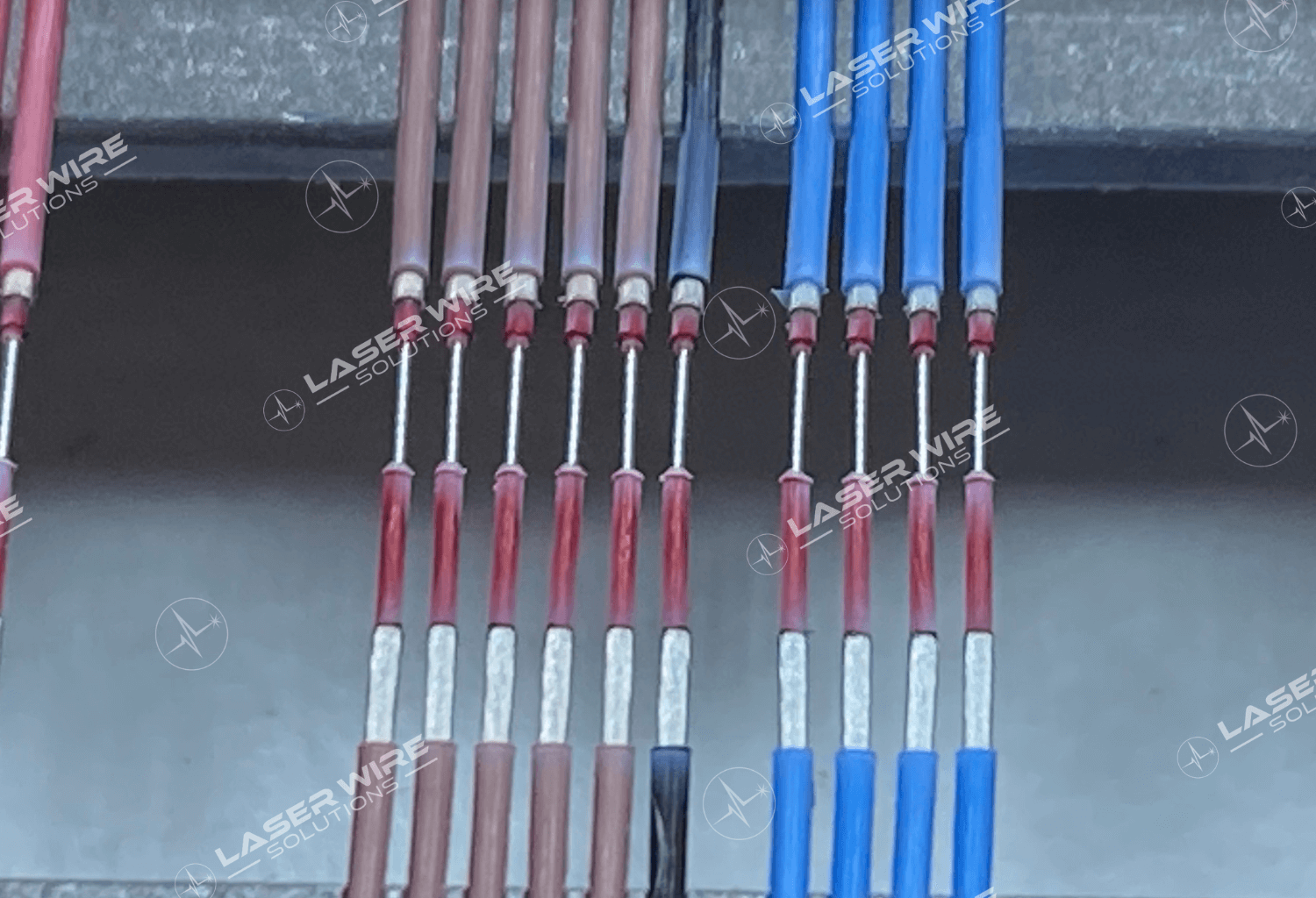

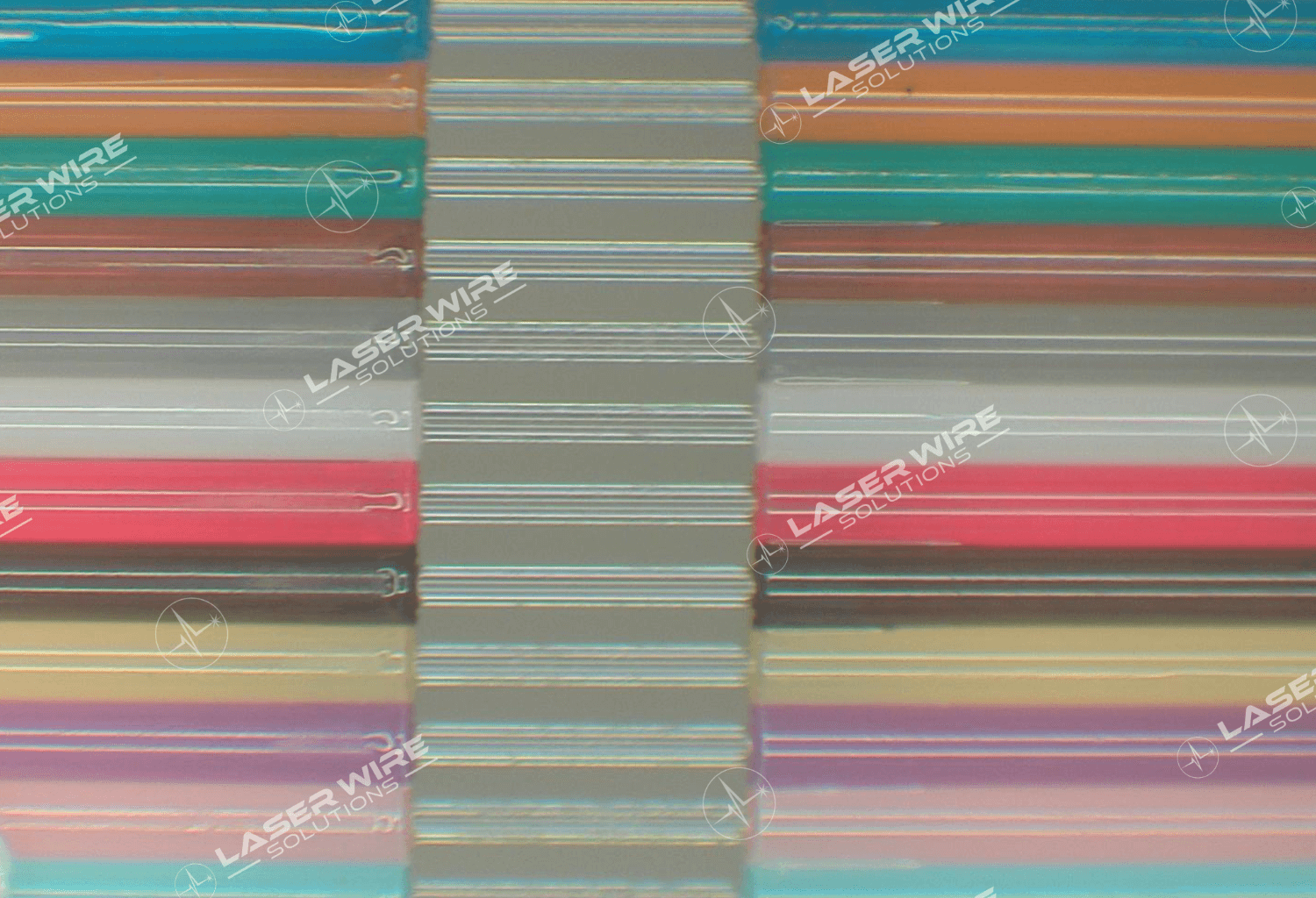

The Gemini-2 machine is best suited to stripping Micro-Coax Shields. Take a look through the gallery of wires stripped using the Gemini-2:
|Min. Outer Cable Diameter||0.025 mm (0.001″)|
|Max. Outer Cable Diameter||2.5 mm (0.1″)|
|Stripping Length Increments||0.1 mm (0.01″)|
|Strip types||Scribed tinned braid, foil cutting|
|Max. Stripping Length||125 mm (5″)|
|Speed||Up to 250 mm/s (10″/s)|
|Cable Loading||Via fixture plate – up to 10 cables at once|
|Dimensions (L x W x H)|
720 mm (28″) x 620mm (25″) x 1000mm (40″)
Discover the capabilities of our machines with your application before you buy
