The Odyssey range of laser wire strippers is a state-of-the-art solution designed and manufactured specifically for precision applications.

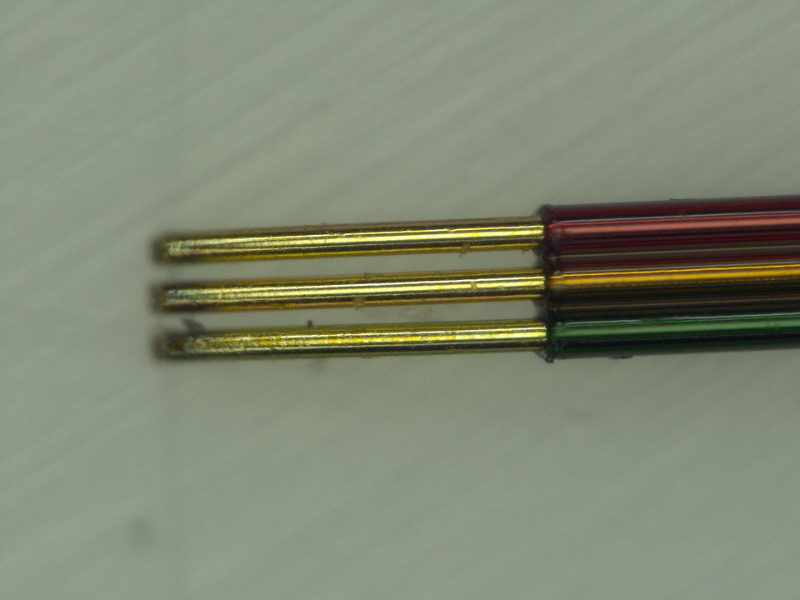

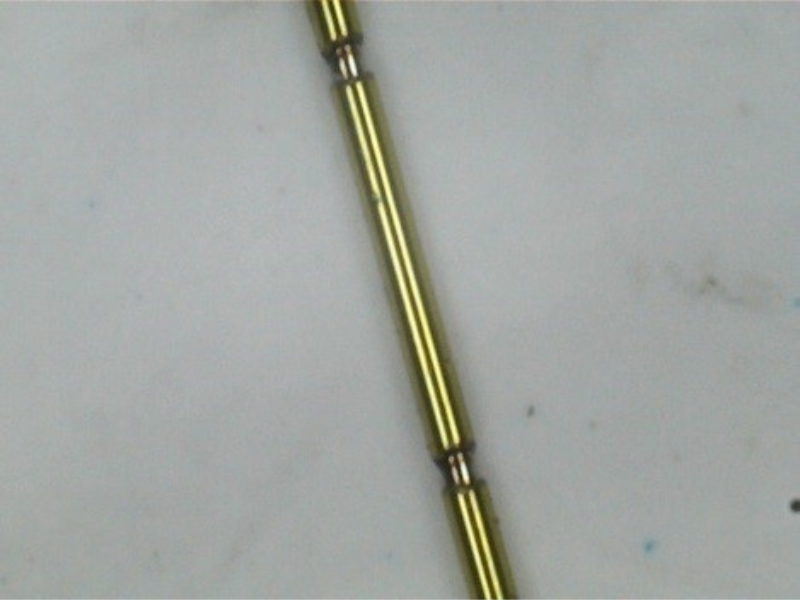

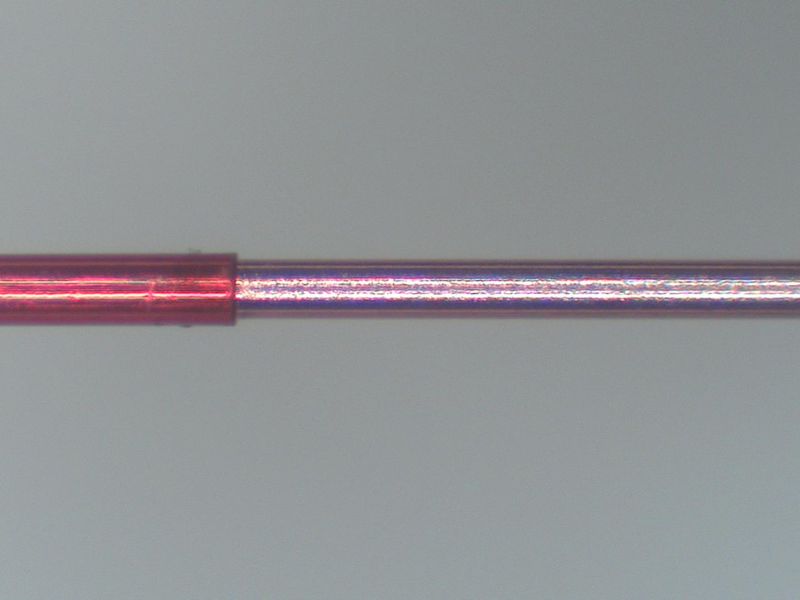

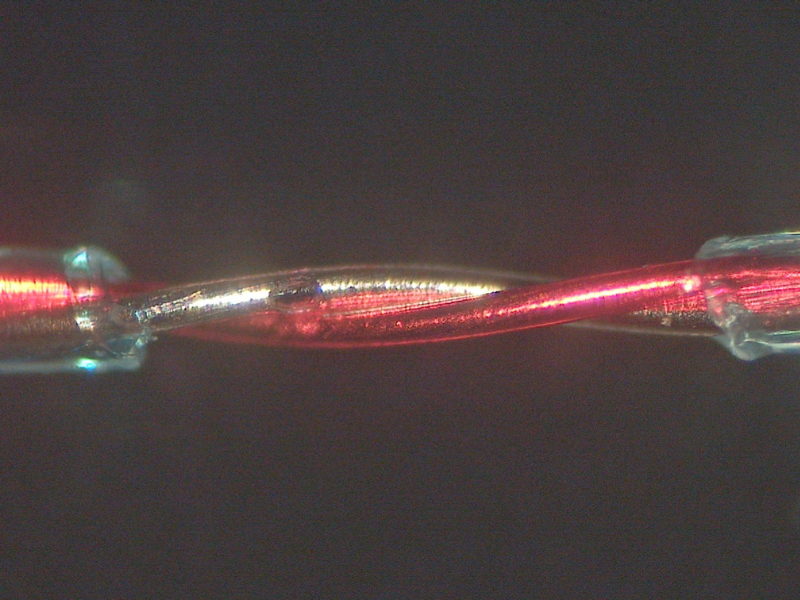

These strippers excel in handling medical fine wire and enamel wire up to 54AWG. They offer single, bifilar, and trilfilar capability, ensuring versatility across various wire types.
With statistical process control, these strippers provide consistent, high-quality results that are operator independent.

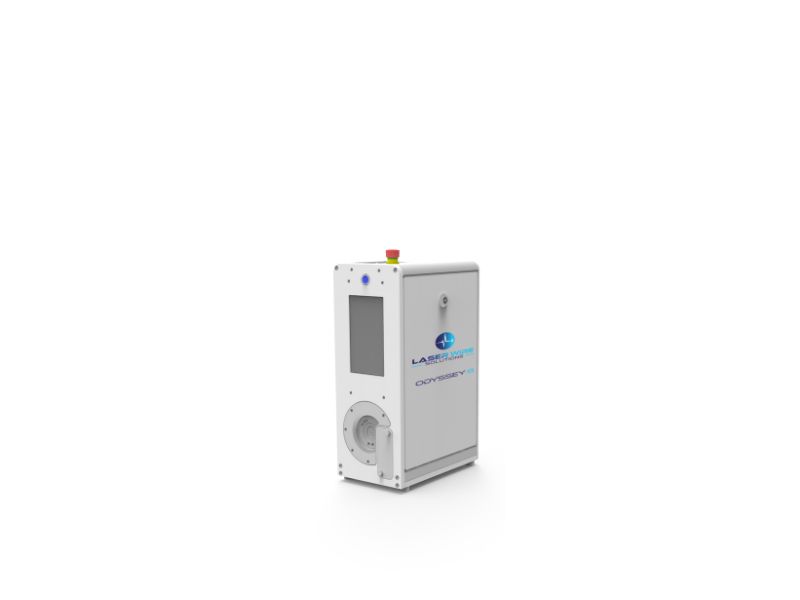

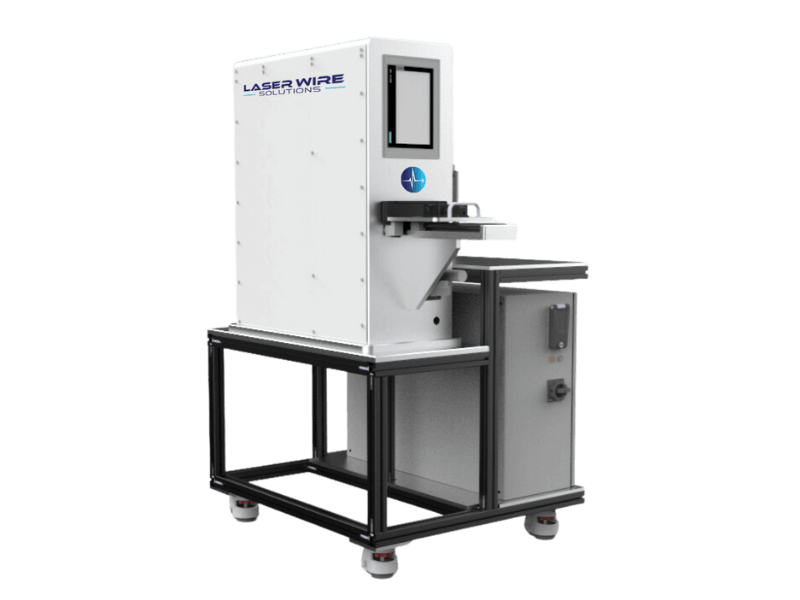

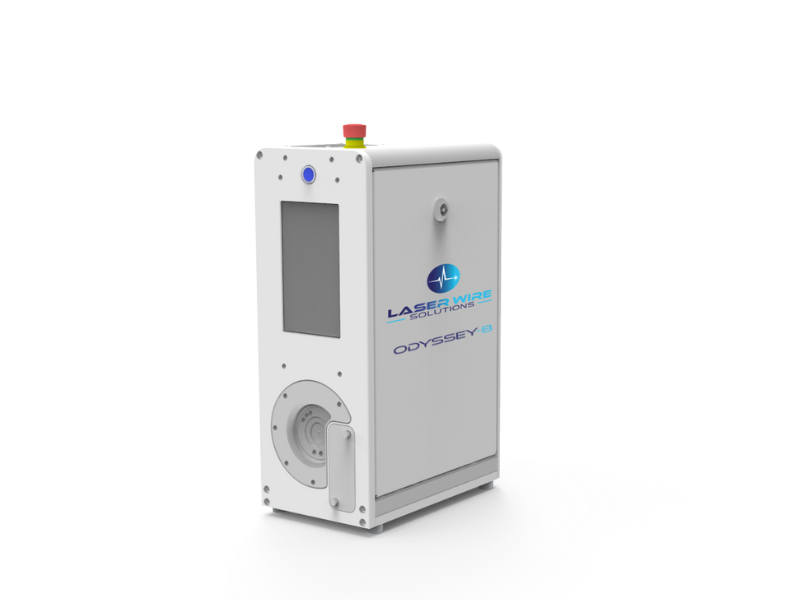

| Feature | Odyssey-4 | Odyssey-8 |
|---|---|---|
| Primary Use | High wire count, multi-wire stripping | Low wire count, single wire processing |

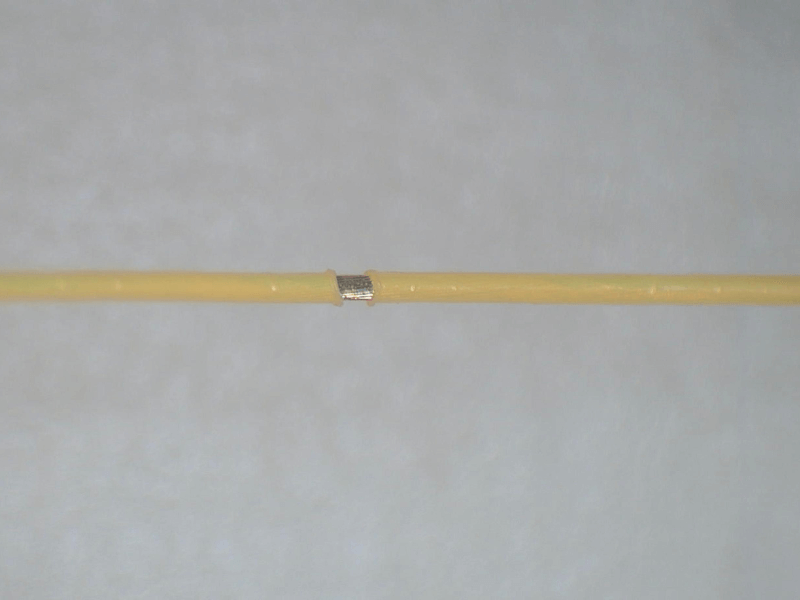

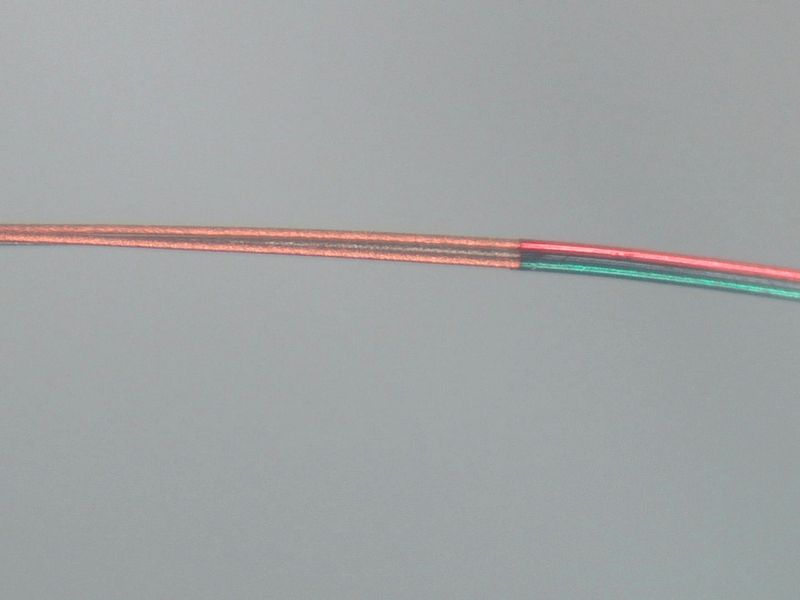

| Target Applications | Medical (catheters, MRI coils), Data Centers, Micro-coax | Medical (catheters, fine wires), R&D, Low volume |
| Wire Types | Single, twisted pair, bifilar, trifilar | Single, twisted pair, bifilar, trifilar |
| Wire Diameter (Max) | < 0.2 mm (custom up to 0.4 mm possible) | < 0.4 mm (standard < 0.2 mm) |
| Smallest Wire Size | Down to 50 AWG | Down to 50 AWG |
| Processing Length | Up to 70 mm (extendable to 100 mm on request) | Up to 15 mm |
| Breakout Length | Full strip area | 25 mm |
| Cycle Time | Short cycle, typical for multi-wire batches | < 3 seconds *material dependent |
| User Interface | 7" touchscreen, RFID login | 7" touchscreen, RFID login |
| Automation Features | Fixture loaded, optional camera | Auto wire detect and gripper |
| Dimensions (LxWxH) | 1180 × 800 × 1470 mm | 180 × 340 × 480 mm |
| Weight | 220 kg | 20 kg (Laser Unit), 6 kg (PSU) |
| Power Supply | 120V, 10A | 120V, 10A or 230V, 5A |
| Extraction Required | Yes (180 m³/hr, HEPA/Carbon filters) | Yes (same specs) |
| Noise Level | ~65 dB (A) | ~65 dB (A) |
| Medical Suitability | High (multi-wire & micro-coax) | High (fine single wires) |
| Setup Flexibility | Fixture plate, in-line, extended bed available | Benchtop or in-line, compact footprint |
| Ideal For | High volume production lines | Quick changeover, flexible R&D and low volume production |
| Price/Footprint Efficiency | Larger footprint, premium for batch work | Compact and cost-effective for limited scale |
Discover the capabilities of our machines with your application before you buy
