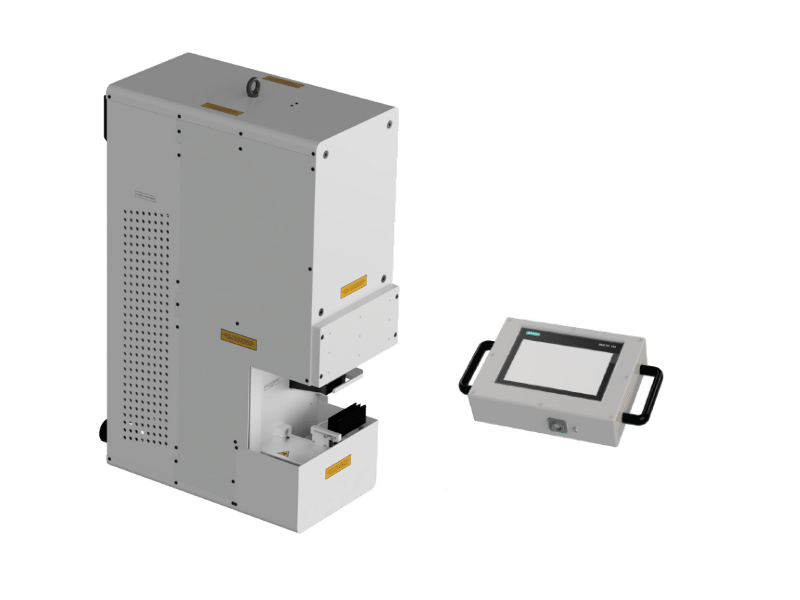

The Mercury-4 OEM is the perfect addition to any production line. It is the automation version of the highly popular Mercury-4 system. The customer-driven design of the Mercury-4 OEM has been purposely designed for seamless integration into lines, and not as a stand-alone machine.
Once integrated the machine acts as a fully automated system requiring no operator to select recipes or strip patterns following the initial setup. This system is supplied as a Class-4 laser system and is designed to be integrated with other systems within an automated production line.
The Mercury-4 is a versatile machine that will suit a wide variety of applications. The easy-to-use, recipe controlled system requires minimal training with your operators while ensuring consistent results in a matter of seconds.
Mechanical blade cable strippers often struggle with non-round cables or those with braid insulations, and chemical dips can be a health and safety nightmare, but fully automated laser wire stripping by the Mercury-4 OEM eliminates these concerns. By utilizing the power of laser processing you’ll be able to achieve high quality results.
While the Mercury-4 OEM system can process most wire and cable materials, we recommend producing a small sample of wire for testing to our applications lab to ensure processing suitability.
|
Suitable Materials |
Polymer insulation such as PTFE, ETFE. PVC not to be processed unless agreed in writing |
|
Processing Capabilities |
Laser stripping, jacket slitting, multiconductor cable processing, out of round cable processing, shield cutting twisted pair cable, window stripping |
|
Processing Length |
Up to 50mm (2″) on the Mercury-4 |
|
Processing Speed |
1000 mm/s |
|
Max. Wire Dimeter |
Up to 5mm (0.2″) |
|
Dimensions (WxDxH) Weight |
13 x 30 x 34″ 220 lbs |
Want to learn more?
Complete the form, tell us which system you’re interested in, and one of our specialists will contact you to discuss your application.
Discover the capabilities of our machines with your application before you buy
Revolutionizing the medical, data, aerospace, defense and automotive industries with the use of lasers and robotics, Laser Wire Solutions is at the cutting edge of laser & robot technology.
